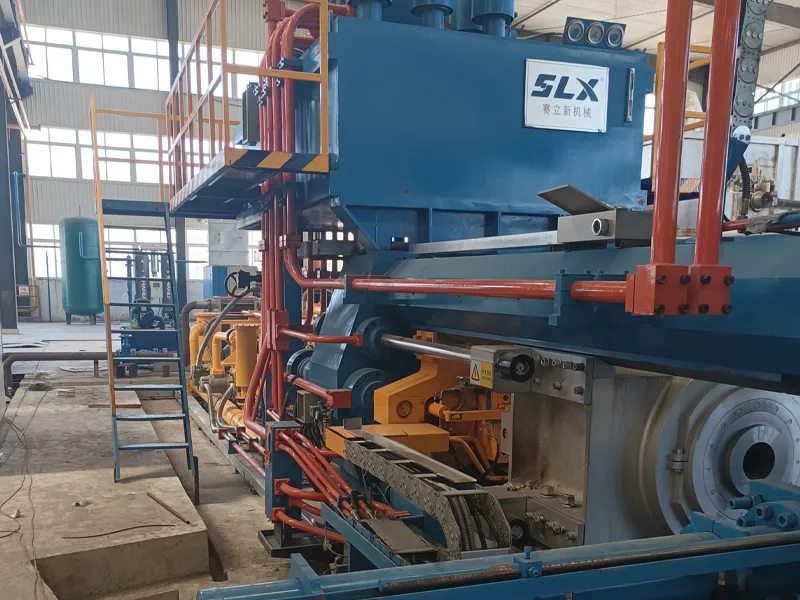

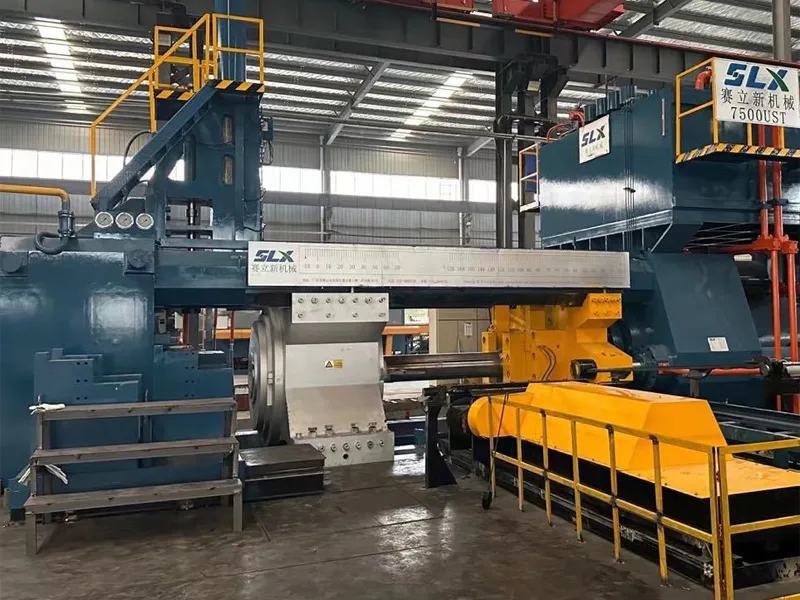

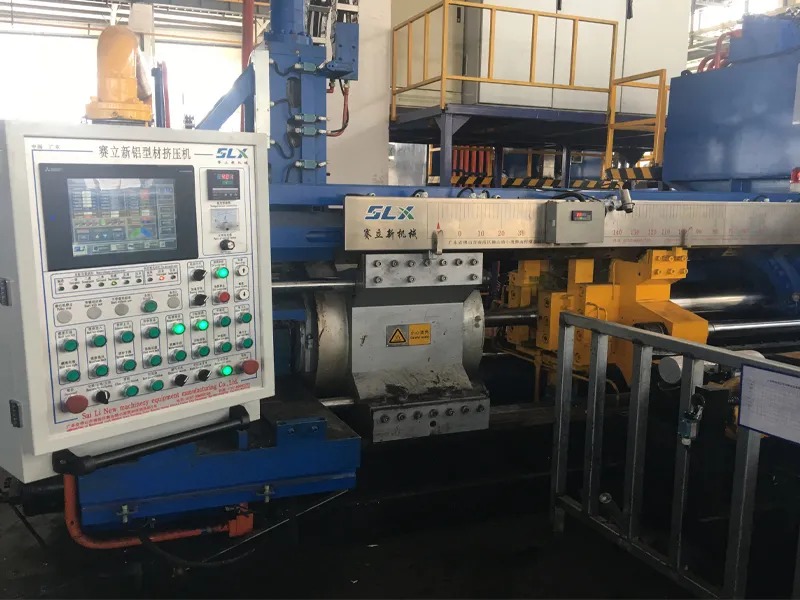

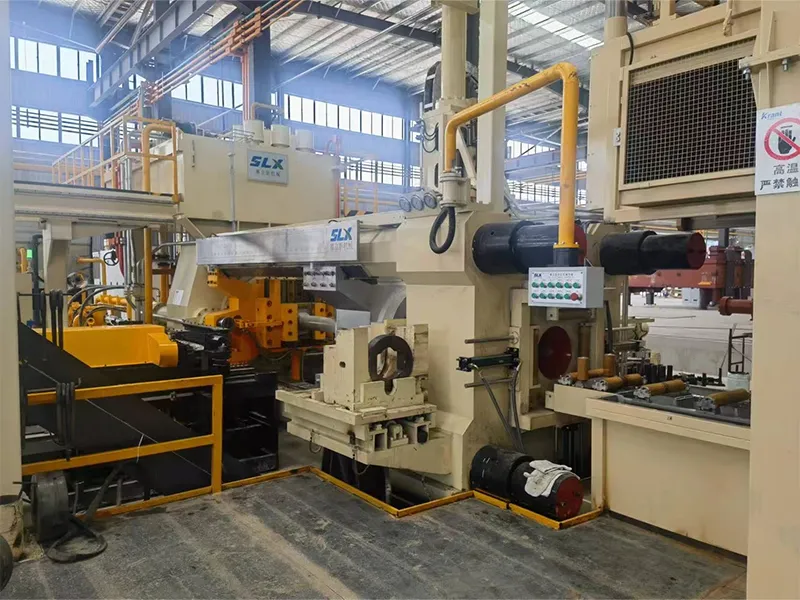

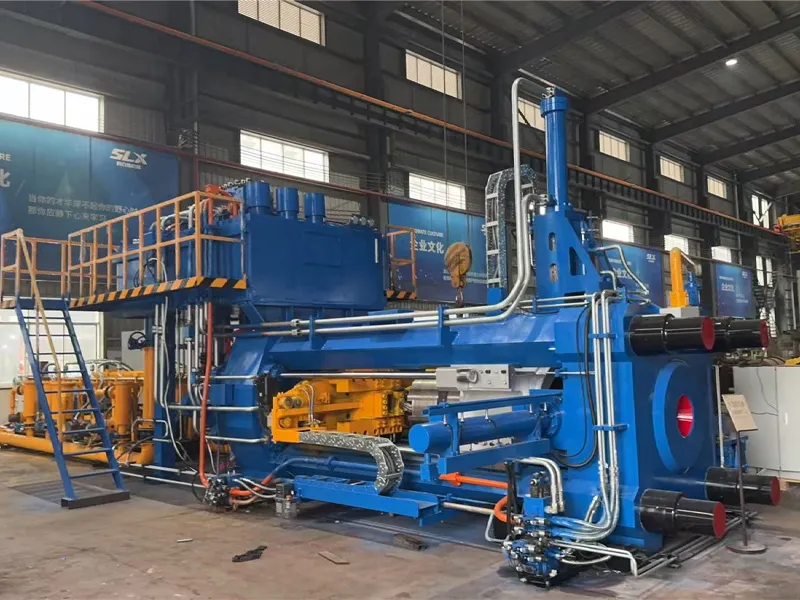

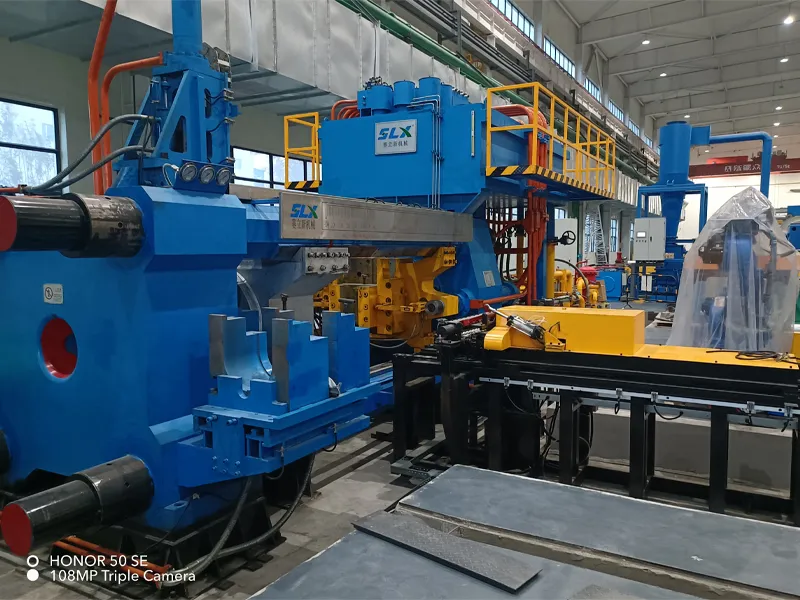

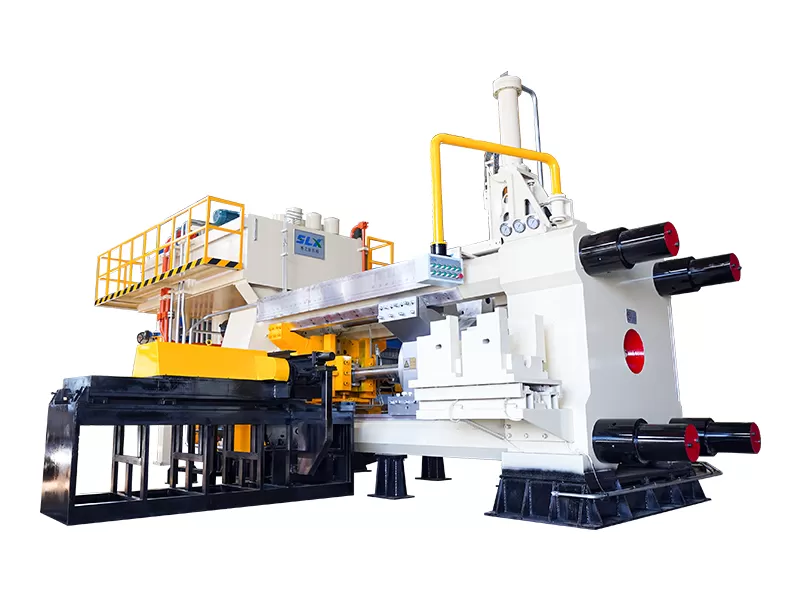

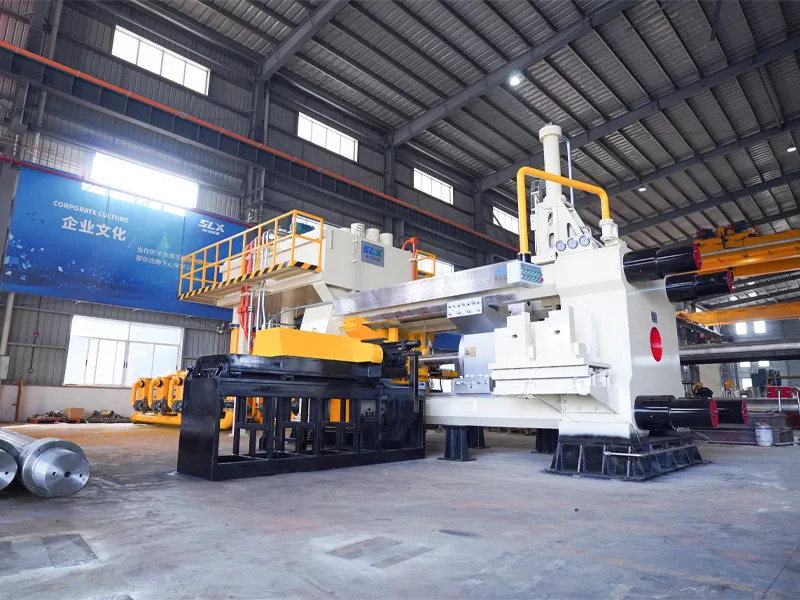

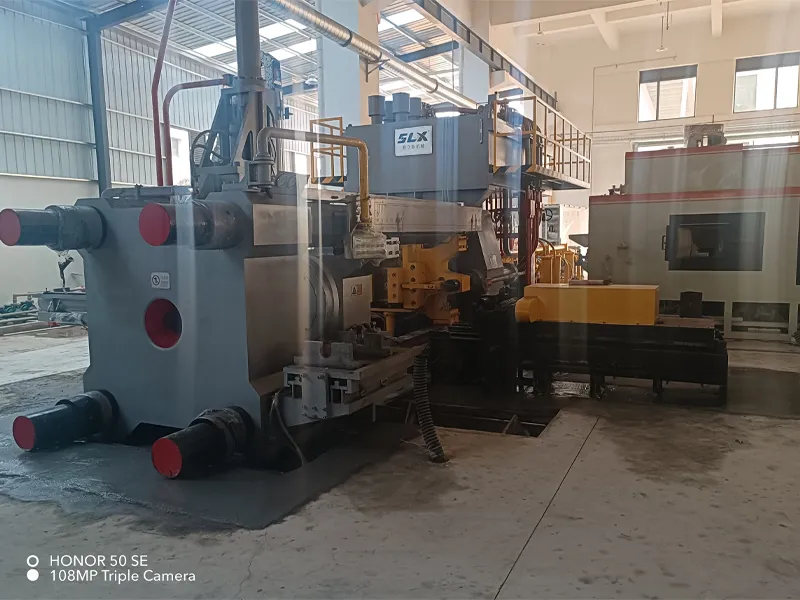

Short Stroke Extrusion Press

Features

1. Reduce non-extrusion time and improve efficiency effectively;

2. High degree of automation, reducing manual operations;

3. The entire machine length is shortened, which reduce the deformation coefficient;

4. The billet loader system is controlled by servo motor, which is faster, more accurate and reliable.

5. Adopt fixed dummy block, easy to operate and save cost (the stem will not be damaged by the operation of putting back the dummy block);

6. High-precision design, improve the rate of good products effectively；

7. Simple operation, workers can easily become familiar with the equipment operation.

Advantages

1. Improve production efficiency.

2. Energy saving and emission reduction.

3. Compact structure, low maintenance cost

4. ‌High precision and stability.

5. Wide range of applications

Inquire Now

Application

1. Automotive industry: vehicle frames, body panels, bumpers, heat sinks, battery enclosures (for EVs) etc.

2. Electronics industry:heat sinks, LED housings, power distribution systems etc.

3. Renewable industry: wind turbine components, mounting structures. etc.

4. Industrial industry: conveyor systems, robotic arms, machine frames, and hydraulic components etc.

Technical Parameters

Nomal Force (Tons)	Category	System Pressure (MPa)	Aluminum (inch)	Aluminum Bar Length(mm)	Outlet Size（mm) (based on customers' requirement)	Total Motor Power (kw)General Motor	Total Motor Power (kw)Servo Motor
1250	short stroke	26	5.5	750	∅170×∅200	240	260
1500	short stroke	26	6	900	∅180×∅230	320	360
1800	short stroke	26	7	1000	∅216×∅280	420	500
2000	short stroke	28	8	1050	∅216×∅280	420	500
2500	short stroke	28	9	1200	∅310×∅380	600	670
2750	short stroke	28	9	1200	∅310×∅380	600	670
3000	short stroke	28	9～10	1200	∅330×∅410	660	720
3600	short stroke	28	11	1300	∅410×∅500	800	870
4000	short stroke	28	12	1300	∅430×∅510	1100	1350
4500	short stroke	28	13	1400	∅430×∅520	1100	1350
5500	short stroke	28	14～15	1500	∅500×∅660	1280	1450
For other specification, please contact us.
